Mingda D3/Pro – Спецификации и настройки

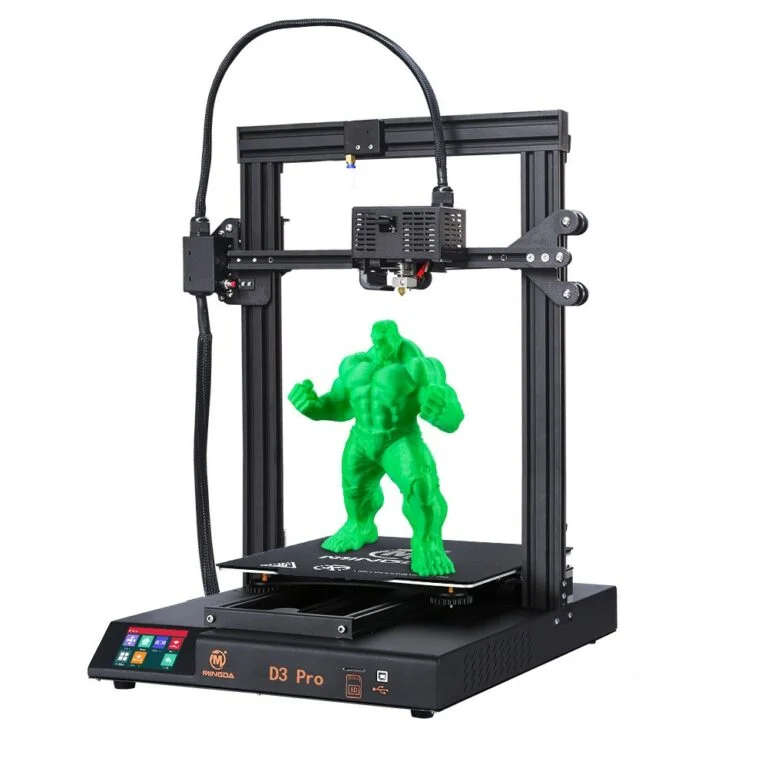

The Mingda D3/Pro is a robust Fused Deposition Modeling (FDM) 3D printer tailored for the „experimenter“ tier. Featuring an expansive Cartesian architecture, this machine boasts a generous build volume of 320 x 320 x 400 mm, enabling the fabrication of large-scale prototypes and functional parts without the need for segmented printing.

Спецификации

• Производител: Mingda
• Технология: FDM
• Клас: experimenter
• Работен обем: 320 x 320 x 400 mm

Чести проблеми и решения

Stringing

Thin, spiderweb-like plastic strands forming between printed parts due to filament oozing from the nozzle during travel moves. Решение: Dry the filament for 4-6 hours at 50-70°C. Increase the retraction distance by 1-2 mm, reduce the nozzle temperature by 5°C, and increase travel speed to 200 mm/s.

Warping

Corners or edges of the print detach from the build plate and curl upwards due to uneven cooling and thermal contraction. Решение: Increase the bed temperature by 5°C, use a 5-10 mm brim, apply an adhesive like a glue stick or PEI sheet, and reduce the part cooling fan for the first 5 layers.

Clogging or Under-extrusion

The nozzle stops extruding material or extrudes too little, resulting in missing layers or thin walls. Решение: Perform 3-5 ‘Cold Pull’ procedures using Nylon to clear nozzle debris. Ensure the PTFE tube is intact, calibrate E-steps (M92), and check for heat creep.

Подходящи приложения

• Large-Scale Rapid Prototyping: Printing full-scale models to evaluate form, fit, and ergonomic design before committing to expensive injection molding tools.
• Manufacturing Jigs and Fixtures: Creating custom, heavy-duty assembly aids, holding templates, and alignment tools utilizing durable engineering materials like CF-Nylon or PC.
• Functional Low-Volume Production: Producing end-use mechanical components and spare parts in batches of 1 to 100 units without tooling costs.
