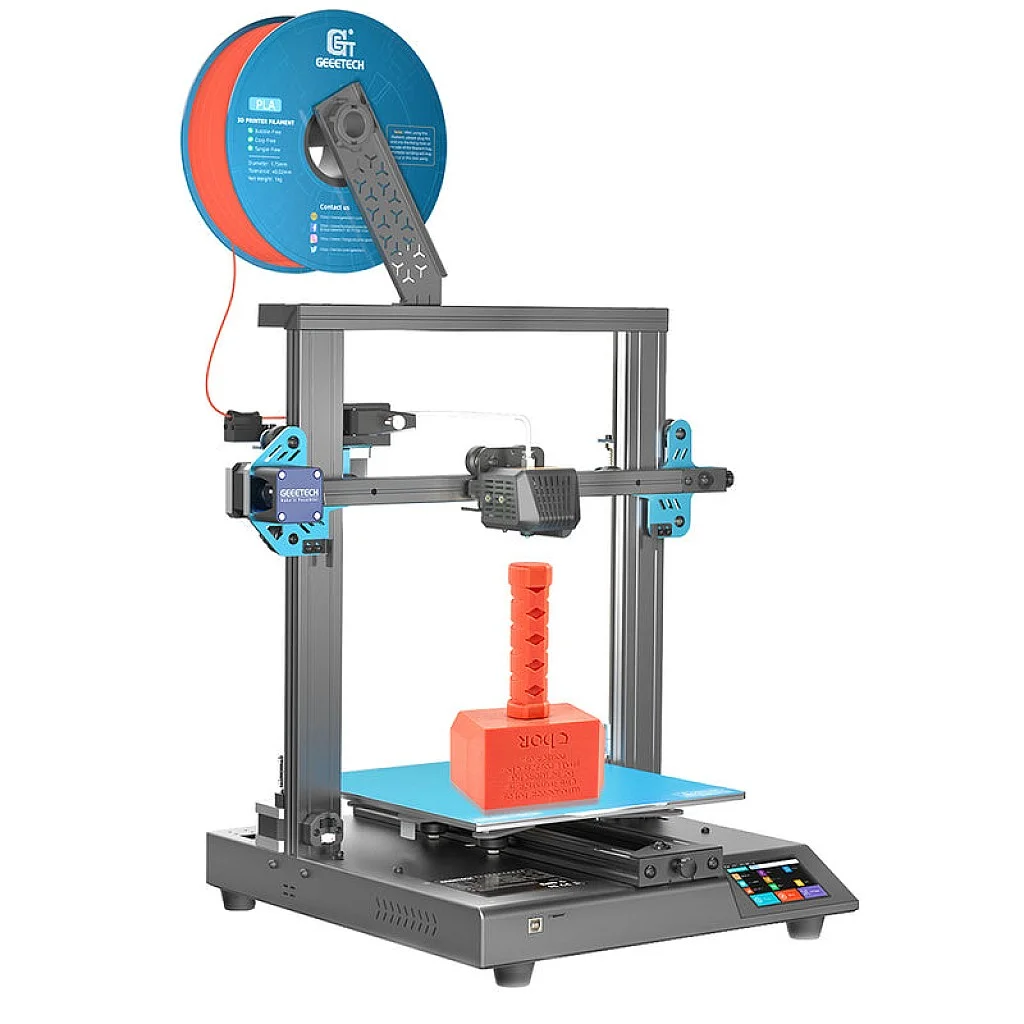

Geeetech MizarS Technical Book – Спецификации и настройки

Спецификации

• Производител: Geeetech
• Технология: FDM
• Клас: experimenter

Чести проблеми и решения

Stringing

Thin plastic threads resembling a cobweb forming between parts due to filament oozing [1]. Решение: Dry the filament for 4-6 hours at 50 degrees Celsius for PLA, increase retraction distance by 1-2 mm, and reduce nozzle temperature by 5 degrees Celsius [2].

Warping

Corners or edges of the print lift and curl away from the build plate due to uneven cooling and thermal stress [2]. Решение: Increase the bed temperature by 5 degrees Celsius, use a 5-10 mm brim, clean the bed with Isopropyl Alcohol, and reduce part cooling for the first 5 layers [3, 4].

Layer Shift

Upper layers are suddenly and sharply shifted horizontally relative to the lower layers due to kinematic issues [3, 5]. Решение: Tighten the X and Y axis belts, check the stepper motor pulleys’ grub screws, and reduce printing speed by 20 percent [5].

Подходящи приложения

• Rapid Prototyping: Creating quick physical models to verify shape, fit, and ergonomics within hours instead of days [6, 7].
• Jigs and Fixtures: Manufacturing custom holding tools, assembly guides, and templates for production lines [6, 8].
