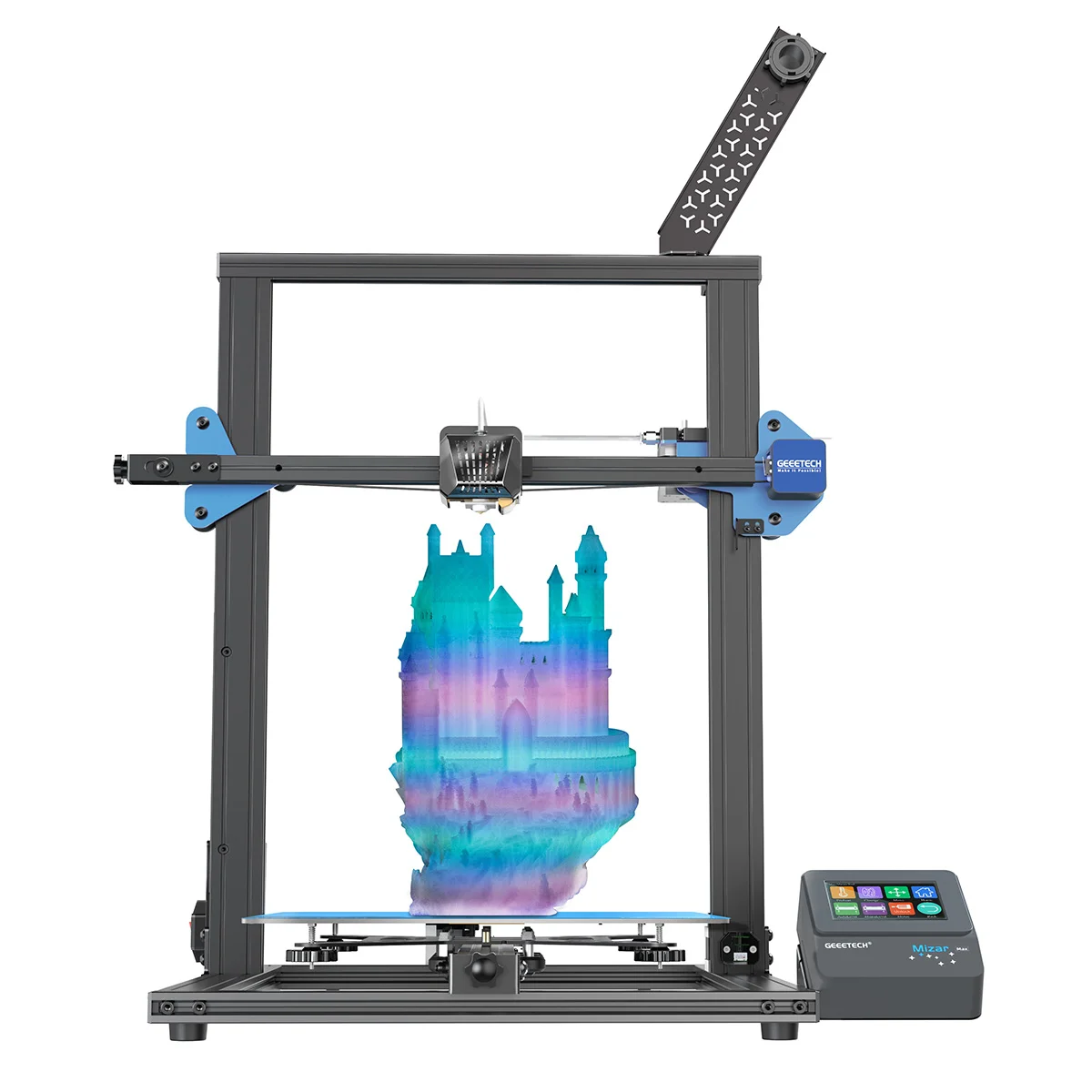

Geeetech MizarMax Technical Book – Спецификации и настройки

Спецификации

• Производител: Geeetech
• Технология: FDM
• Клас: experimenter

Чести проблеми и решения

Stringing

Manifests as thin threads of plastic appearing between separate parts of the printed model. It is commonly caused by moisture in the filament or insufficient retraction. Решение: Dry the filament for 4-6 hours at 50°C for PLA. Increase the retraction distance by 1-2 mm, decrease nozzle temperature by 5°C, and increase travel speed to 200 mm/s.

Warping

A thermal defect where corners or edges of the print detach from the build plate and curl upwards due to uneven thermal contraction. Решение: Increase the heated bed temperature by 5°C, apply an adhesive like glue stick or use a PEI sheet, add a 5-10 mm brim, and decrease part cooling to 30% for the first 5 layers.

Clogging

Extrusion stops completely during printing due to heat creep, moisture, or debris blocking the nozzle. Решение: Perform a ‘Cold pull’ procedure 3-5 times using Nylon heated to 240°C and pulled at 100°C. Check the heat break cooling fan and replace the PTFE tube if deformed.

Подходящи приложения

• Rapid Prototyping: Fast production of physical models for visual inspection, fit-checks, and ergonomic testing before mass production.
• Jigs and Fixtures: Creation of customized manufacturing aids, templates, and holding tools capable of withstanding mechanical stress.
• Educational Models: Printing physical demonstrations of complex geometries, STEM lab projects, and student designs from concept to physical object.
