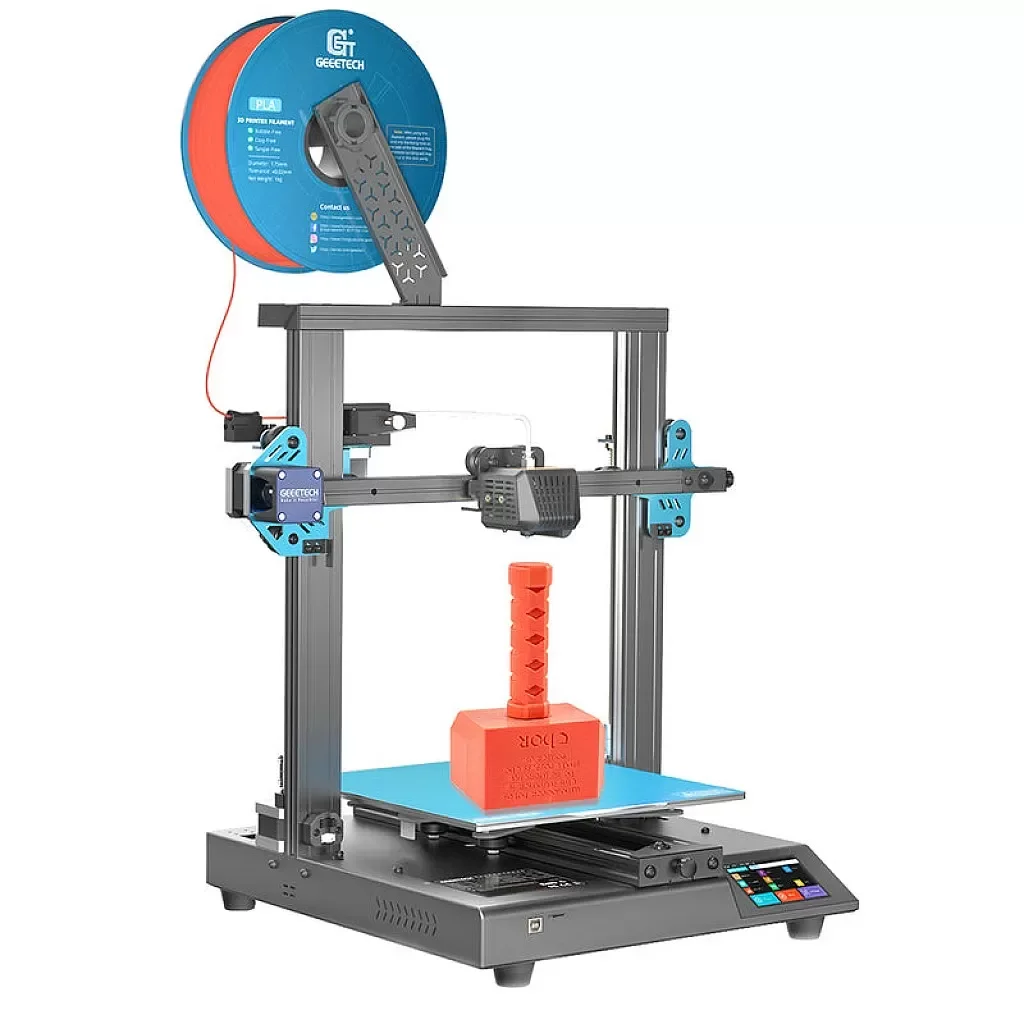

Geeetech Mizar_S (legacy) Technical Book – Спецификации и настройки

Спецификации

• Производител: Geeetech
• Технология: FDM
• Клас: experimenter

Чести проблеми и решения

Stringing

Thin web-like strings appearing between printed parts [1]. Решение: Dry filament for 4-6 hours at 50°C for PLA, increase retraction distance by 1-2 mm, and decrease nozzle temperature by 5°C [1-3].

Warping

Corners or edges of the print detach and curl up from the build plate due to residual stress [3]. Решение: Increase bed temperature by 5°C, add a 5-10 mm brim, reduce part cooling to 30% for the first 5 layers, and clean the bed with IPA [2, 4, 5].

Under-extrusion

Walls are thin and brittle, with visible gaps in the layers due to partial clogs or incorrect E-steps [6, 7]. Решение: Perform a cold pull to clear clogs, calibrate E-steps (M92 command), check extruder gear tension, and increase nozzle temperature by 5°C [2, 7].

Подходящи приложения

• Rapid Prototyping: Creating quick physical models for form and fit-checks in a matter of hours [8, 9].
• Jigs and Fixtures: Producing custom manufacturing templates and alignment tools for assembly lines [8, 10].
• Educational Models: Printing physical visual aids and STEM projects for classrooms [8, 9].
