What CAM is and what this program does
CAM is the program that turns the shape of a part into a cutter toolpath and a finished G-code program for a CNC machine. The EduFacturing one is an online tool, part of Pro. The feature is one of three: a rectangle contour, a circle contour or a rectangular pocket.

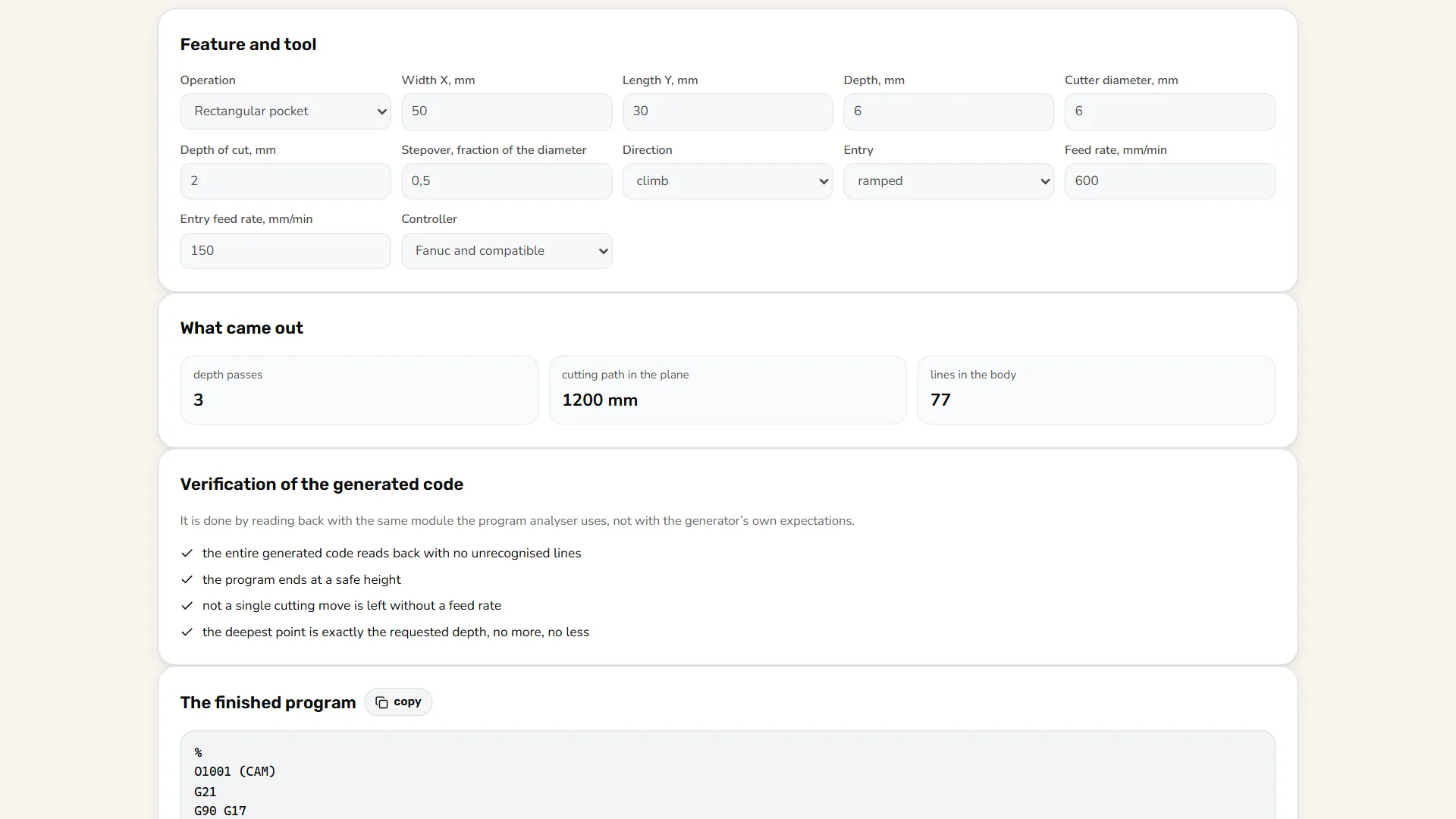

You set the dimensions, the cutter diameter, the depth of cut, the two feed rates, the direction and the controller. The tool gives the number of passes, the cutting path and the G-code itself, which copies with one button.
The calculations run in the browser. The start and end blocks come from the shared module of controller dialects.
G-code for a mill from a contour or a pocket

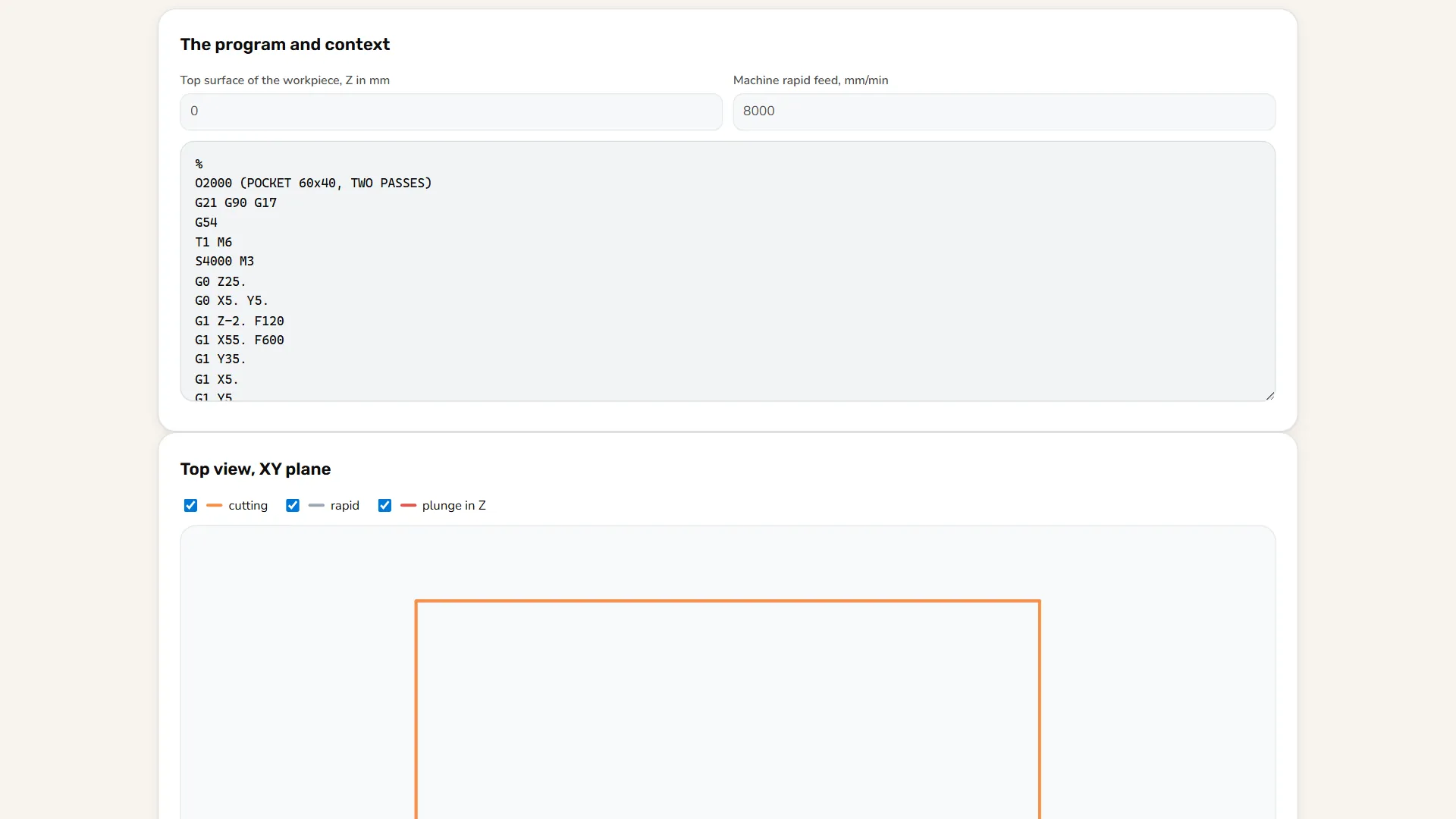

Builds a toolpath for contours and pockets
The contour goes around the outside, with the cutter centre one radius out from the drawing. The pocket runs on concentric contours inward, and a circle is made of 48 segments.
Splits the depth into passes
The last pass is the remainder: 5 mm at 2 mm per pass gives Z −2, −4 and −5. Entry is ramped or vertical with its own feed rate, and the path direction is climb or conventional.

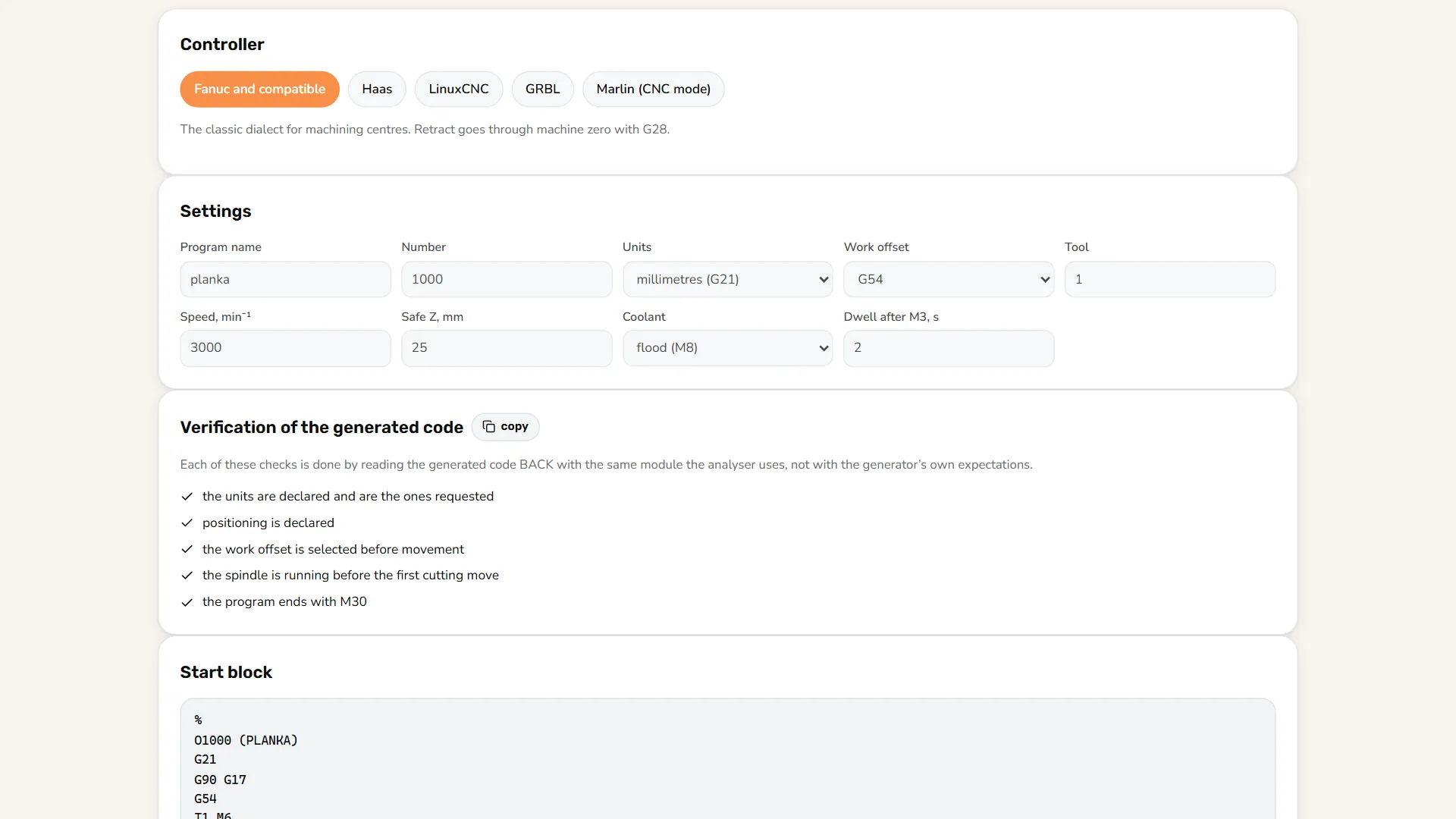

Writes G-code for your controller
Units, work offset, tool change, spindle, coolant, retract and the end of the program depend on the controller.
Checks the program and says what was not checked
Four checks on the G-code read back. A separate list shows the checks that were not done, and why.
When you need a CNC milling program
A toolpath makes sense when you can see how dimensions become lines.
A CNC programming course
A student changes the cutter diameter and sees how the coordinates and the cutting length change.
A simple job on a small machine
A pocket or a contour for a part on a GRBL or Fanuc-compatible machine, with no hand calculation of the offset.
Comparing controllers
Switching the controller changes only the start and end blocks: Haas and LinuxCNC retract with G53, and GRBL has no automatic tool change and no G43.
How the passes and the toolpath are worked out
The geometry is plain mathematics, with no table values. Rules from the rules core appear only as qualitative notes, with no invented numbers.
Path in the plane
The contour is offset outward by the cutter radius. The pocket starts one radius in from the wall and steps inward.
Lines of the program
For every pass and contour: safe Z, rapid to the start, entry, then the path at feed. The start and end blocks come from the chosen controller.
| Applies to | Formula | Meaning |
|---|---|---|
| Depth passes | n = ⌈H / h⌉, Z_k = −min(k·h, H) | H is the depth, h is the depth of cut; at 6 and 2 mm, n is 3 |
| Rectangle contour | half side of the path = W/2 + D/2 | W is the width, D is the cutter diameter; the centre runs outside |
o_k = D/2 + k·s·D, while o < min(W, H)/2 | s is the stepover as a fraction of D; the contour is W − 2·o by H − 2·o | |
| Cutting path | L = Σ perimeters · n | in the plane, without rapid moves; for a 50 × 30 mm pocket, D = 6, s = 0.5, H = 6, h = 2 mm: 400 mm · 3 = 1200 mm |
A program check, and what was not checked

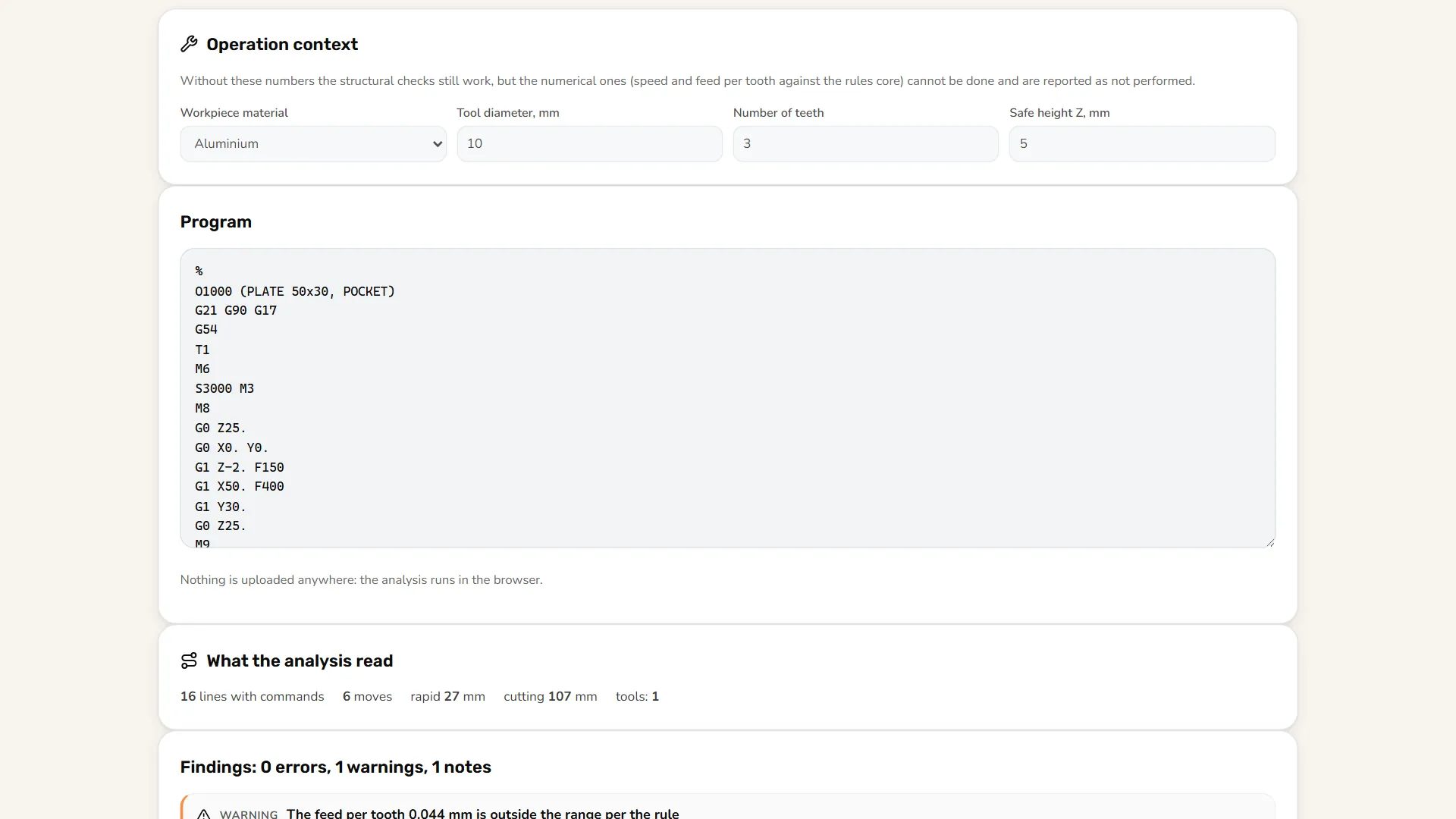

G-code check after generation
The program is read back through the G-code module shared with the G-code checker. It checks that every line reads, that the program ends at a safe height, that every cut has a feed rate and that the deepest point is exactly the requested one.
The cutter radius is in the coordinates
Without G41 and G42 the cutter radius is in the coordinates and does not depend on the radius compensation in the controller. The tool length (G43) and the work offset (G54) still come from the machine.
It shows what was not checked
Depending on the setup, the ramp angle, the depth of cut and the stepover against the diameter are listed with a reason: the rules core has no rule for them, and a number is not invented.
Three operations: no arbitrary geometry, no 3D surfaces and no rest machining. Circles are made of segments, with no G2 and G3 arcs. The feed rates are an input and are not checked against the material. Climb is a path counterclockwise for all three operations, and the spindle is M3: by the geometry that is climb cutting for the pocket but conventional cutting for the outside contour.
The start and end blocks are fixed: millimetres, work offset G54 (not on Marlin), tool 1, 3000 rpm, coolant M8 and a safe Z of 25 mm. On GRBL and Marlin the tool change is a comment and M6. The program is copied, not downloaded as a file, and the toolpath is not drawn here.
